Mimaki UJF-3042 Series tabletop flatbed UV printers
Mimaki UJF-3042 Series tabletop printers can print on a variety of substrates including plastics, metal, wood, leather and glass onto materials up to 12” x 16”. The UJF-3042FX model can print onto substrates up to 2” thick, while the UJF-3042HG can accommodate objects up to 6” thick. Three types of UV-cure inks can be used, and White and Clear (varnish) inks are available. An imprinting function (available on RasterLink 6 in the U.S. soon) supports variable data print runs. High resolution and variable dot printing technology deliver impressive, high quality results. Jettable primer is available to help ink adhere to smooth surfaces such as glass. The Kebab option for the UJF-3042HG model enables printing directly onto cylindrical objects such as bottles and candle holders.
UJF-3042 Series Go Beyond Imagination
Create specialty items, novelties, awards, custom pieces and more
Accommodates media up to 14.3” W x 18.2” L (364 x 463 mm)
UJF-3042FX can print on objects up to 2” thick (50 mm)
UJF-3042HG can print on objects up to 6” thick (150 mm)
High quality print resolution of up to 1200 dpi
Variable dot printing delivers high quality with smooth gradients
White, Clear, and Primer available
Jettable primer places dots precisely where needed
LH-100 inks offer high scratch and chemical resistance
LF-140 inks adds Light Cyan and Light Magenta for application versatility
LF-200 inks enable stretching of ink up to 200%
Nozzle Check Unit and Nozzle Recovery System
Low-energy UV-LED lamps enable printing on heat-sensitive substrates
Highlights of the Mimaki UJF-3042 Series
The Ability to get Creative
With a Mimaki UJF-3042 Series printer you can produce any number of imaginative items. A few examples include: custom smartphone covers, personalized writing instruments, announcement boards (on glass or other substrates), nameplates (both full color and etched), lenticular panels, membrane switch panels, photo album covers, custom wine bottles, and a wide range of novelty and gift items.
Variable Drop Printing
The advantage of variable drop printing is most apparent when printing color gradations in light or pastel colors.
Product video of the UJF-3042
White, Primer and Clear
Add White ink to print onto clear acrylic to create backlit panels or to print on wood, metal, or non-white surfaces. Mimaki Circulation Technology regularly circulates White ink between the supply and the print head to prevent settling. Primer helps the ink adhere to surfaces such as glass. Clear ink adds ‘pop’ and protection to finish a piece.
Mimaki’s UV-LED system uses less energy than other UV types, has a longer life and can print into media that could be damaged by higher-heat systems, allowing the machine to print directly on virtually almost anything, including heat-sensitive materials. Variable data printing is possible on a maximum size of 11.8″ x 16.5″ (420 x 297 mm)(A3).
Two models are available: UJF-3042FX, which can print on media up to 2″ thick (50 mm), and UJF-3042HG up to 5.9″ thick (150 mm).
The Kebab option for UJF-3042HG model enables printing on cylindrical objects ranging from about one to 13 inches in length, with a diameter from 0.4 to 4.33 inches. Add this option to produce custom products such as personalized beverage bottles, candles, vases, cans, etc.
Automatic Primer Application Function
Both printers incorporate an automatic primer feature, simplifying pre-priming process, which is traditionally done manually by wiping or spraying. Mimaki’s inkjet primer cartridge is simply inserted into the corresponding ink slot of UJF-3042, enabling the primer to specifically target the print image area only.
*Always test your intended materials before using primer. When printing with primer and white / clear ink, production speed is reduced to some extent.
Useful Functions to Ensure Print Quality
Mimaki Spray Suppressor System prevents satellite ink drops, ensuring higher print reliability, consistency, and quality.
Nozzle Recovery Function temporarily restores print quality, reducing potential downtime if maintenance issue should arise.
Mimaki Circulation Technology (MCT) is a newly developed white ink circulation system that prevents pigment sedimentation and reduces ink waste. Available on UJF-3042HG.
Kebab option (UJF-3042HG)
Strong points of Kebab Option
360° direct printing on cylindrical item
The on-demand printing – Sampling
Printable on the cylindrical item
Maximum length of 12.9″ (330mm)
Diameter from 10 up to 4.3″ (110mm )
Maximum weight of 6 lb. (3 Kg)
Printing on the wide variety of the cylinder broadens the range of the application
Easy installation on the UJF-3042 HG / UJF-6042 with the special connector
Quick and Easy replacement of the table is possible
360 Direct print on Cylinders
Print by rotating the substrates 360 degrees. Adjustment width: Diameter 10mm?110mm. Maximum weight: Up to 3kg (6lb).
Measure the diameter
Diameter x pi (3.14)?Circumference
Print Area is obtained
Two Diameter settings
Bottle (Diameter: 61.5mm (2.4 in))
Printing mode: 720 x 1200 dpi 16Pass
Print data: Label (Y direction)
Scan = 3.1″ (80mm) x direction(Feed) = 10″ (240mm)
Candle (Diameter: 11mm)
Printing mode: 720 x 1200 dpi 16Pass
Print data: Decollation (Y direction)
Scan = 4.7″ (120mm) x direction(Feed) = 1.35″ (34.54mm)
Examples of Kebab products
Applications of the UJF-3042 Series
What you can do with the Mimaki UJF-3042 Series

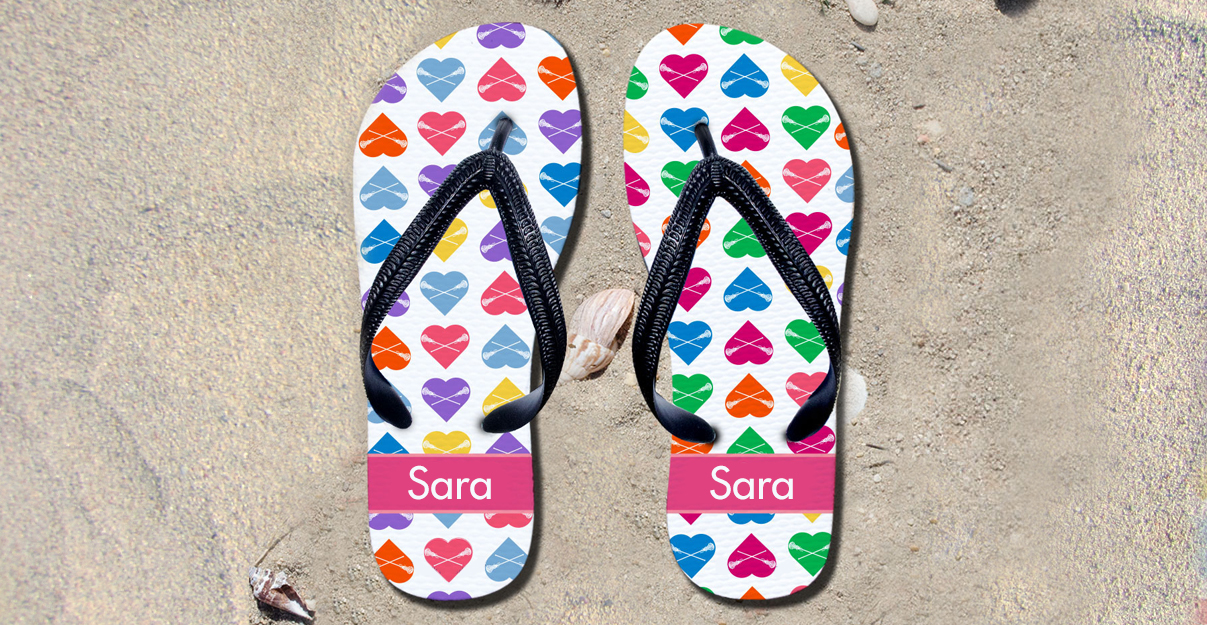

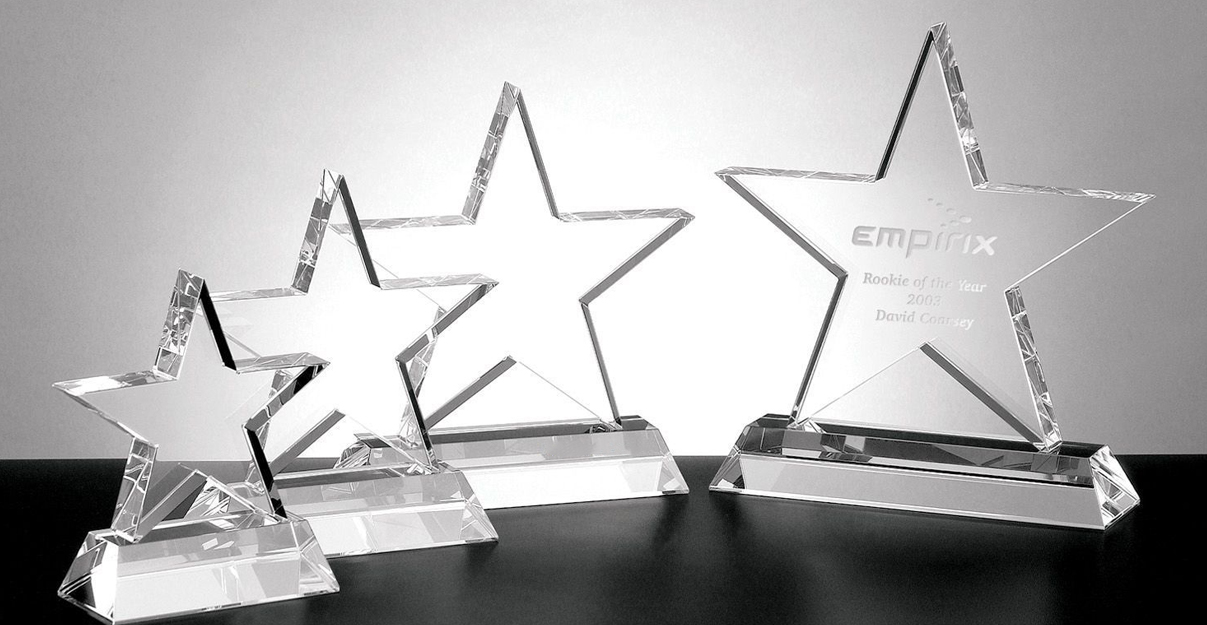

The Mimaki UJF-3042 series can print on a variety of surfaces such as plastic, wooden, leather and glass, to create awards, custom gifts and other specialty printing items offering almost unlimited possibilities when it comes to applications.
220 ml cartridge, SPC-0659C
600 ml ink pack, SPC-0597C
220 ml cartridge, SPC-0727C
600 ml ink pack, SPC-0728C
220 ml cartridge, SPC-0660C
600 ml ink pack, SPC-0591C
220 ml cartridge, SPC-0659M
600 ml ink pack, SPC-0597M
220 ml cartridge, SPC-0727M
600 ml ink pack, SPC-0728M
220 ml cartridge, SPC-0660M
600 ml ink pack, SPC-0591M
220 ml cartridge, SPC-0659Y
600 ml ink pack, SPC-0597Y
220 ml cartridge, SPC-0727Y
600 ml ink pack, SPC-0728Y
220 ml cartridge, SPC-0660Y
600 ml ink pack, SPC-0591Y
220 ml cartridge, SPC-0659K
600 ml ink pack, SPC-0597K
220 ml cartridge, SPC-0727K
600 ml ink pack, SPC-0728K
220 ml cartridge, SPC-0660K
600 ml ink pack, SPC-0591K
220 ml cartridge, SPC-0659W
600 ml ink pack, SPC-0597W
220 ml cartridge, SPC-0727W
600 ml ink pack, SPC-0728W
220 ml cartridge, SPC-0660W
600 ml ink pack, SPC-0591W
220 ml cartridge, SPC-0659CL
600 ml ink pack, SPC-0597CL
220 ml cartridge, SPC-0727LC
600 ml ink pack, SPC-0728LC
220 ml cartridge, SPC-0727LM
600 ml ink pack, SPC-0728LM
220 ml cartridge, SPC-0731
600 ml ink pack, SPC-0732
Use the below link for more information on Supplies available for the UJF-3042 Series. (Note that not all Supplies configurations are available in all geographies ? check with your Mimaki customer service representative or Mimaki authorized dealer for available stock.)
The School of Mimaki Application and Resource Training (SMART) Program includes comprehensive training for end-users and dealers. Classes include Vinyl Wraps for Beginners and Optimizing Output using RasterLink6 Software and more. Advanced technical support programs for authorized dealers are also offered.
