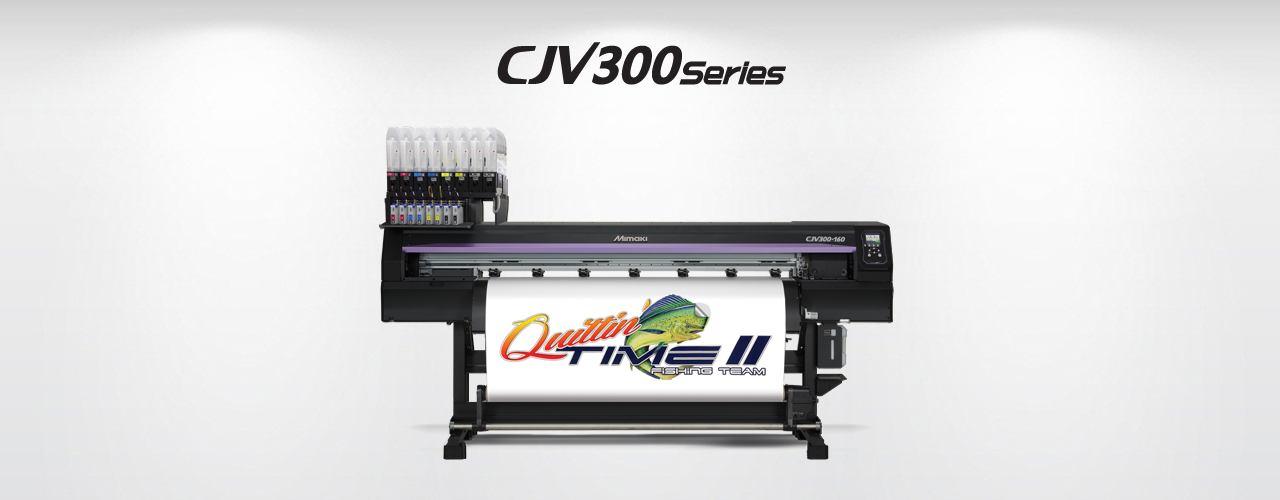

Mimaki CJV300 Series: high-speed, integrated cutter/printer
Mimaki CJV300 Series high-speed solvent printer cutter devices go beyond extraordinary to deliver an amazing array of applications. Eco solvent inks in a variety of colors – including Silver – and advanced printing technologies means you can produce anything from fine art reproductions to outdoor signage. And, with precision cutting capability on board you can go beyond posters and banners to deliver complete campaigns that include labels, decals and even T-shirt transfers. Employing the Mimaki CJV300 Series printers’ superb quality, color fidelity, throughput and contour cutting then printing flexibility, you’ll go beyond the expected to capture more wallet share and deliver whatever your customers can imagine.
Go Beyond Conventional with the Mimaki CJV300
- Fast printing speeds up to 1140 SqFt (105.9 SqM) per hour
- Cut and print capability on one unit
- High quality print resolution of up to 1,440 dpi
- Two model widths: 54-inch (1361 mm) and 64-inch (1610 mm)
-
Choice of eco solvent or dye sublimation ink sets:
- Eco solvent: 10 color options including Silver, White, Orange and Light Black inks
- Dye sublimation: vibrant 6 color dye sub options
- 2-liter bulk ink system standard for most colors
- Nozzle Check Unit and Nozzle Recovery System
- 3-way intelligent heater
Features
Highlights of the Mimaki CJV300 Series
Economical Bulk Ink System
The CJV300 Series printers are equipped with the MBIS3 (Mimaki Bulk Ink System 3) featuring economical, high-capacity 2L ink packs. The new design saves space by fitting on top of the cartridge ink station. It’s the perfect solution for long running jobs.
Cut and Print Capability
The ability to pre-cut before printing prevents common problems such as film separation and other issues related to post-cutting on thin materials.
Eco Solvent or Dye Sublimation
The CJV300 Series can be configured for either eco solvent printing for sign and graphics applications or for dye-sublimation printing for textile and apparel transfer sublimation applications.
Expanded Eco Solvent Ink Set with Silver
The SS21 eco solvent ink set includes ten colors including Silver, which can be used to create metallic color effects for labels, decals and package prototyping jobs.
Precision Ink Drop Placement
Mimaki designed an optimum waveform enabling the print head to jet each ink color at the appropriate jetting angle without losing precise ink droplet circularity.
Anti-Banding Technology
Variable drop printing combined with MAPS3 (Mimaki Advanced Pass System 3) technology ensures precise and accurate print quality throughout the printing process, greatly reducing the appearance of banding and resulting in a smoother image.
Uniform Media Drying
A Mimaki-patented, three-way intelligent heating system results in uniform ink drying across the width of the printer, assuring even image quality.
- Pre-heater: Heats media to the optimum temperature before printing.
- Print heater: Dries ink after it lands on media before it bleeds, improving color development.
- Post-heater: Enhances ink drying and achieves stable take-up.
- Top blower: Air blower supports drying of ink.
Applications
Applications of CJV300 Series
With eco solvent inks:
- Signage
- Vehicle graphics
- Point-of-purchase displays
- Banners
- Posters
- Exhibition graphics
- Window clings
- and more…
With dye sublimation inks:
- Flags
- Fashion & Sportswear
- Promotional
- Exhibition soft signage
- T-shirt transfers
- and more…
With on-board cutting:
- Labels
- Decals
- Vehicle markings
- Apparel transfers
- and more…
Specifications
Technical overview of the Mimaki CJV300 Series
| Print system | On-demand piezo, two staggered print heads per color 8 channels for a variety of ink configurations |
| Max print width |
CJV300-130: 53.5 inches (1361 mm) CJV300-160: 63.3 inches (1610 mm) |
| Print resolutions | 300, 540, 720, 1080, 1440 dpi |
| Max print speed |
CJV300-130: 991 SqFt/Hr (92.1 SqM/Hr) CJV300-160: 1140 SqFt/Hr (105.9 SqM/Hr) |
| Ink type |
Mimaki SS21 eco solvent ink: C, M, Y, K, Si, W, Lc, Lm, Lk, Or Mimaki Sb54 dye sublimation ink: Bl, M, Y, K, Lbl, Lm |
| Ink capacity |
2-liter bulk ink system standard for most colors 440ml cartridges available for most colors 220ml cartridges only for Silver and White ink |
| Max media width |
CJV300-130: 53.9 inches (1371 mm) CJV300-160: 63.7 inches (1620 mm) |
| Max roll weight | 88 Lbs. (40kg) |
| Ink color | SS21: 10-color (CMYK Lc Lm Lk Or W Si), BS3 (CMYK) |
| Max media thickness | 1.0 mm |
| Operational environment |
Temp: 59? – 86? F (15? – 30? C) 35-65% RH (non-condensing) |
| Connectivity | USB 2.0 |
| Outside dimension |
CJV300-130: 99″(W) × 28″ (D) × 55″(H) (2,525mm × 700mm × 1,392mm) CJV300-160: 109″(W) × 28″(D) × 55″(H)(2,775mm x 700mm) × 1,392mm) |
| Power supply | Single-phase AC 100-120V (AC 220-240V) x2 |
| Dimensions (W x D x H) |
CJV300-130: 99 x 28 x 71 inches (251 x 71 x 180 cm) CJV300-160: 109 x 28 x 71 inches (277 x 71 x 180 cm) |
| Weight |
CJV300-130: 368 lbs. (166.9 kg) CJV300-160: 392 lbs. (177.8 kg) |
Gallery
Gallery
Brochure
JV300 Series
Technical
Technical
Eco Solvent ink (SS21)
- Cyan: 2L bulk ink pack, PC-0588C, 440ml cartridge, SPC-0501C
- Magenta: 2L bulk ink pack, PC-0588M, 440ml cartridge, SPC-0501M
- Yellow: 2L bulk ink pack, PC-0588C, 440ml cartridge, SPC-0501C
- Black: 2L bulk ink pack, PC-0588K, 440ml cartridge, SPC-0501K
- Light Magenta: 440ml cartridge, SPC-0501LC
- Light Black: 440ml cartridge, SPC-0501LK
- Orange: 440ml cartridge, SPC-0501OR
- White: 220ml cartridge, SPC-0504W-2
- Silver: 220ml cartridge, SPC-0504Si
Dye Sublimation ink (Sb54)
- Blue: 2L bulk ink pack, SB54-BL-2L, 440ml cartridge, SB54-BL-44
- Magenta: 2L bulk ink pack, SB54-M-2L, 440ml cartridge, SB54-M-44
- Yellow: 2L bulk ink pack, SB54-Y-2L, 440ml cartridge, SB54-Y-44
- Black: 2L bulk ink pack, SB54-K-2L, 440ml cartridge, SB54-K-44
- Light Blue: 2L bulk ink pack, SB54-LBL-2L, 440ml cartridge, SB54-LBL-44
- Light Magenta: 2L bulk ink pack, SB54-LM-2L, 440ml cartridge, SB54-LM-44
Use the below link for more information on Supplies available for the CJV300 Series. (Note that not all Supplies configurations are available in all geographies ? check with your Mimaki customer service representative or Mimaki authorized dealer for available stock.)
CJV300 Series Supplies
